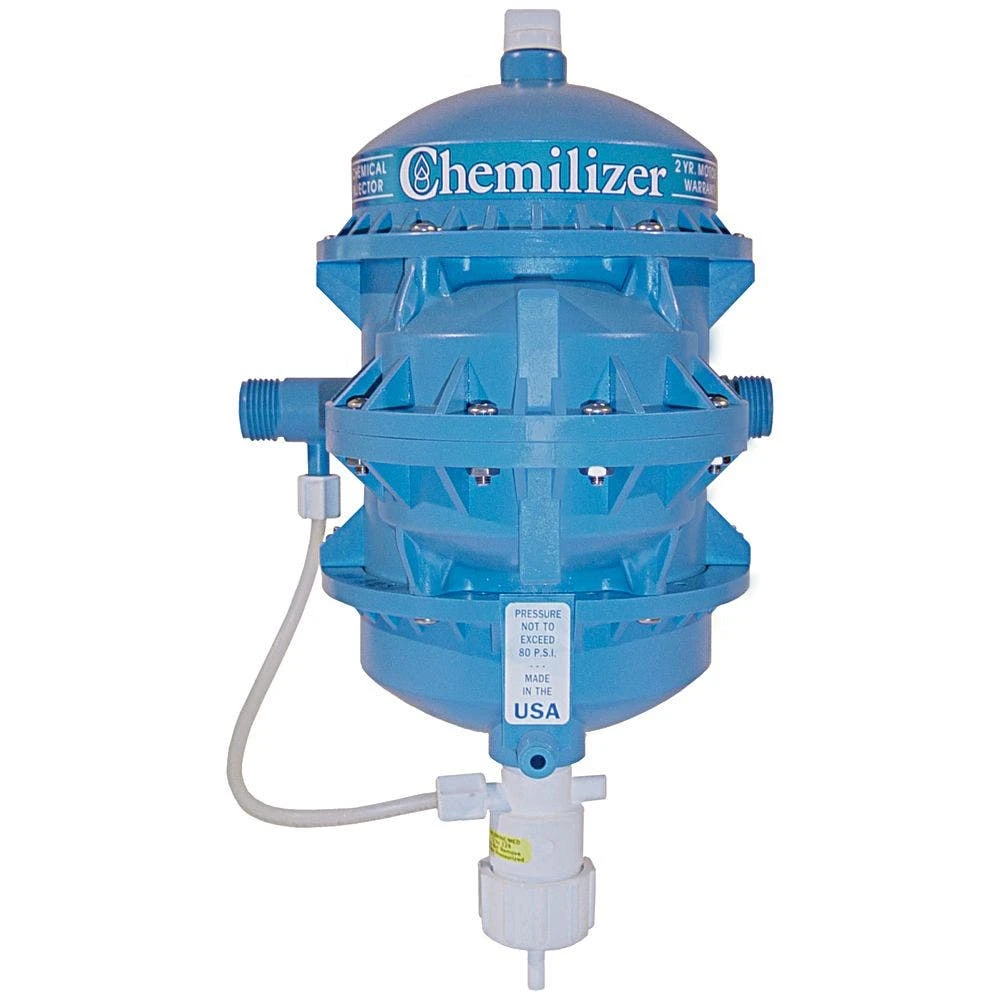

Chemilizer HN55 Chemical Injector, 1 To 100 Oz. Ratio

Direct Shipment Notice

Please note: this item ships directly from the manufacturer, and is excluded from free shipping promotions.

Product Specs

Water flow is 1 gph to 13 gpm, at 2 to 80 psi. 3/4″ hose thread. Ratio is set 1 to 100 (ounce).

Product Warranty Information

Water motor components have a two-year warranty.

Product Features

• Chemilizer HN55 Chemical Injector
• Ratio Non Electric Fertilizer Injector
• Accurate, low maintenance and water driven for years of dependability!
• Smart 2 part system: the water motor has no sliding piston to wear out and the motor is not affected by chemicals, the chemical pump twists in and out of water motor for easy maintenance
• Can install permanently in line or to carts for mobile applications
• Can connect directly to water hose for spot drenching: 3/4″ NHT connections
• Operates with water flows from 1 gph to 13 gpm at pressures of 2 80 psi. Fixed ratio of 1 oz product to 100 oz of water. Other ratios available upon request.

Product Shipping Weight

• 8 pounds

Frequently Asked Questions

QUESTION: How does the water motor work? ANSWER: Non electric water motor functions on demand with water flow. Inside the water motor is a fixed diaphragm assembly that travels up and down with alternate filling of the upper and lower chambers of the motor. Inserted into the bottom of the water motor is a positive displacement chemical pump. The chemical pump draws directly from a stock solution container and injects into the water line. No chemicals go inside the water motor.

Additional Product Information

Owner’s Manual
